Upgrade the WiFi antenna on your wireless device!
The fiber-reinforced polymer (FRP) WiFi Omni Antenna has a 6dBi high-gain and minimum voltage standing wave ratio (V.S.W.R.). Working in 360° horizontal beamwidth, the wifi omnidirectional antenna receives and transmits wireless signals in all directions.
FRP (fiber-reinforced polymer) is a composite material made of a polymer matrix reinforced with fibers, usually used in aerospace, automotive, marine, and construction industries. The FRP radome provides ultra-strong protection to the antenna.
Featured by the marine-class quality and water-resistance, the FRP WiFi Omni antenna supports outdoor 24/7 working. Due to high gain and low V.S.W.R, improve the wifi coverage on wireless-enabled devices including 4G router, WiFi modem, 4G CPE, etc.

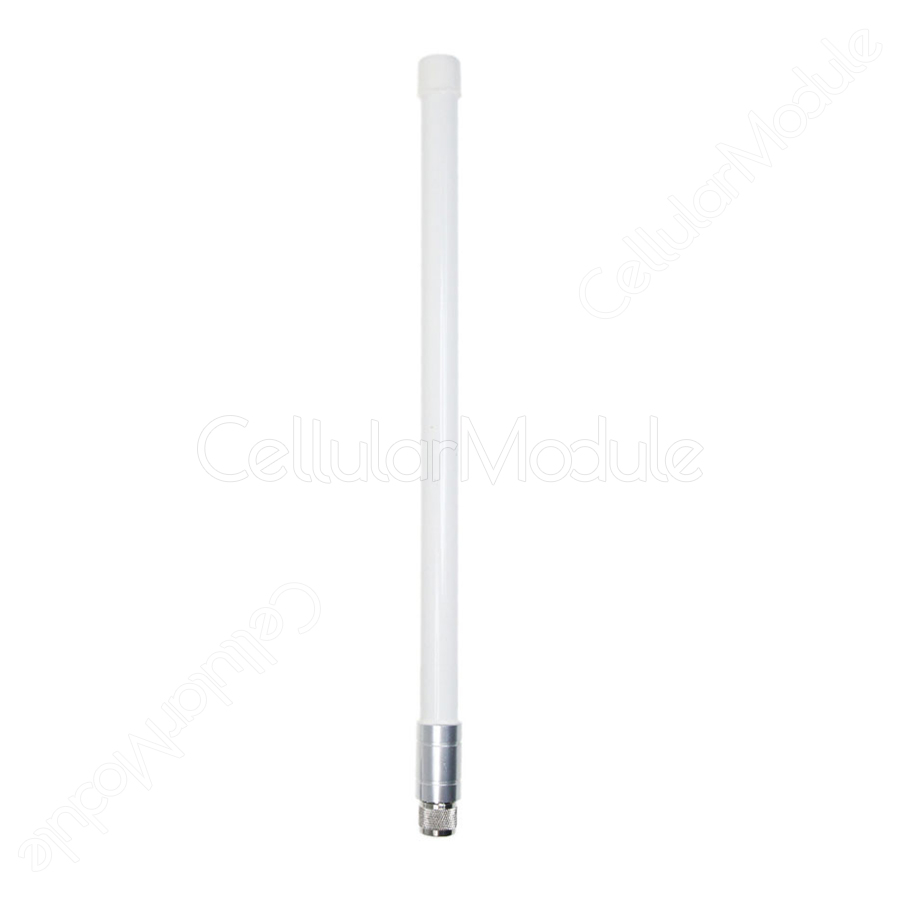

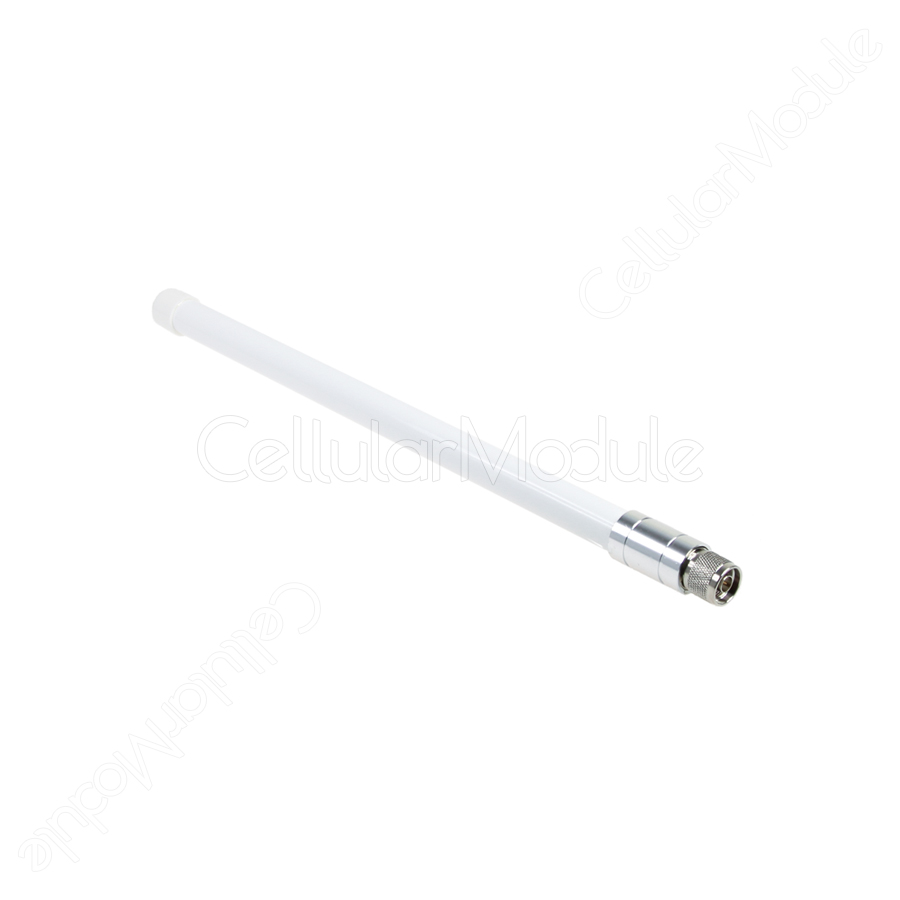

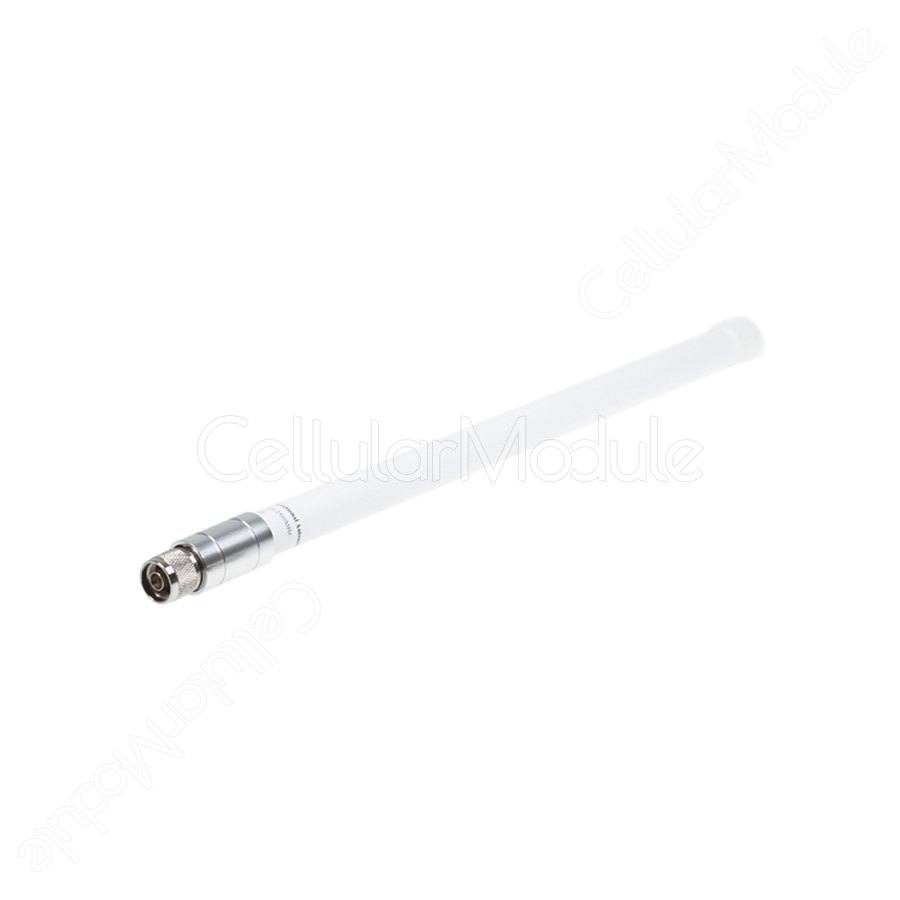

Outdoor FRP WiFi Omni Antenna
| Frequency | 2400~2500MHz |
| Bandwidth | 100MHz |
| Polarization | Vertical |
| Gain | 6dBi |
| VSWR | ≤ 2 |
| Horizontal Beamwidth | 360° |
| Max Power | 10 Watt |
| Impedance | 50 ohm |
| Lighting Protection | Direct ground |
| Connector | N-Male |
| Radome Material | FRP (Fibre-reinforced plastic) |
| Radome Color | White |
| Radiating Element | Copper (CU) |
| Dimension | Dia 20 x 400mm |
| Weight | 160 gram |
| Temperature | -40~70 degree |
| Rated Wind Velocity | 60 m/s |
| Rod diameter | Φ35~50mm |
Horizontal Working Pattern
Vertical Working Pattern
FRP Wi-Fi Omni antenna comes with an N-K male connector; you could directly connect the FRP Wi-Fi Omni antenna to N-K female Wi-Fi sockets on the device.
If your device is not N-K female, you can contact us to get a jumper cable.
