1-Meter 50-5D Coaxial Cable

Name: 1 Meter 50-5D Coaxial Cable
Brand: CellularModule
SKU: EZ16201-BK99
Price: 10.00 USD
Availability: InStock

The 50Ω 50-5D standard coaxial cable could transfer radio frequency signals over distances with low signal loss. It allows you to connect WiFi and 4G antennas to the router and signal booster to maximize wireless performance.

50-5D is the outdoor rated flexible low loss coaxial cable for use in rugged environments. Each roll has 1pcs 1-meter 50-5D cables and it has 2xN-K male connectors.

Enquiry

SKU: EZ16201-BK99 Categories: Cable, RF Coaxial Cable Tags: 50-5D Cable, Antenna Cable, coaxial cable, Router Cable

Description
Reviews (0)

1 Meter 50-5D Coaxial Cable

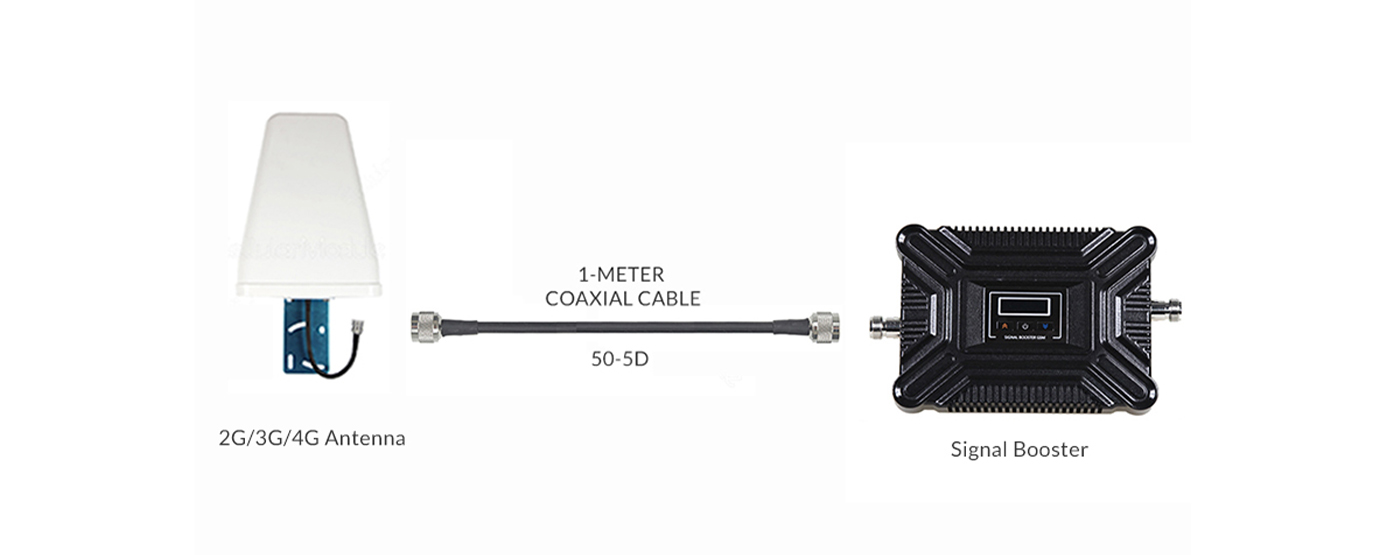

1M 50-5D coaxial cable to connect antenna and signal booster

Max Attenuation at 20°C

Frequency	Attenuation
150 MHz	7.8 dB/m
280 MHz	10.8 dB/m
350 MHz	12.1 dB/m
400 MHz	13.0 dB/m
800MHz	18.9 dB/m
900MHz	20.2 dB/m
1200MHz	23.7 dB/m
1500MHz	26.8 dB/m
1900MHz	30.6 dB/m
2000MHz	31.5 dB/m
2500 MHz	35.8 dB/m

Low-loss Coaxial Cable

50Ω Ohm impedance – RF signals travel down easily
Aluminum wire braid shield, over 95% coverage
Low PIM passive intermodulation

Outdoor Grade Cable

1M 50-5D flexible coaxial cable
8mm outer PVC jacket
Water resistant RF cable

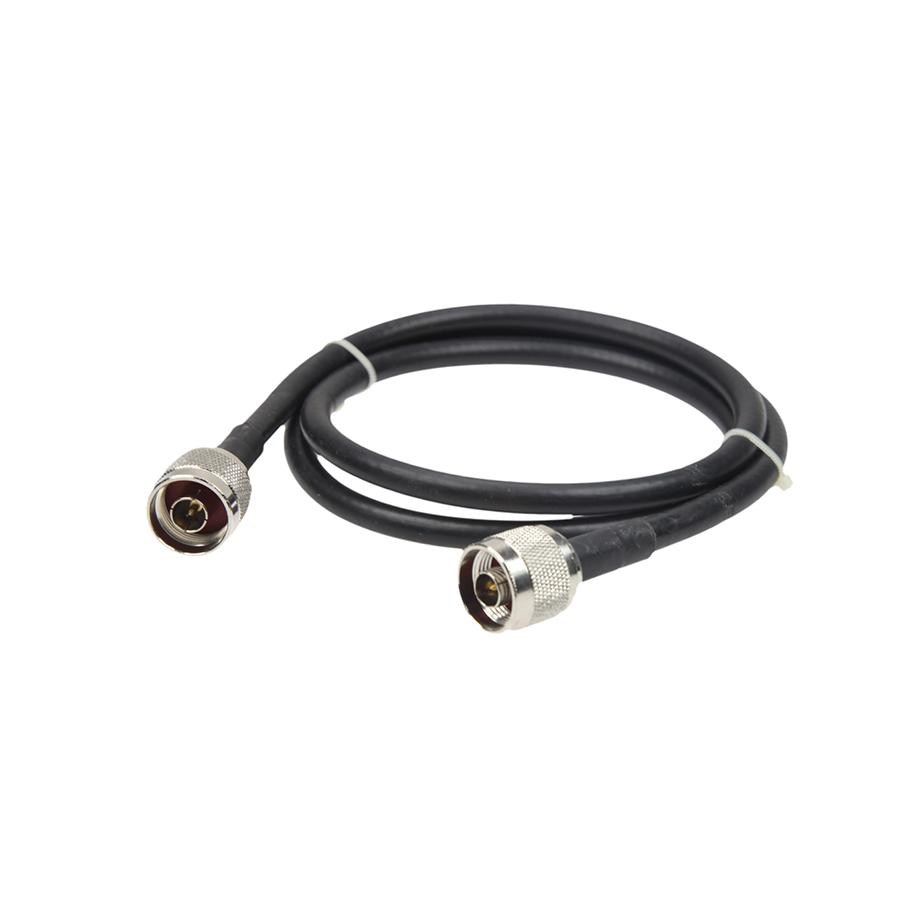

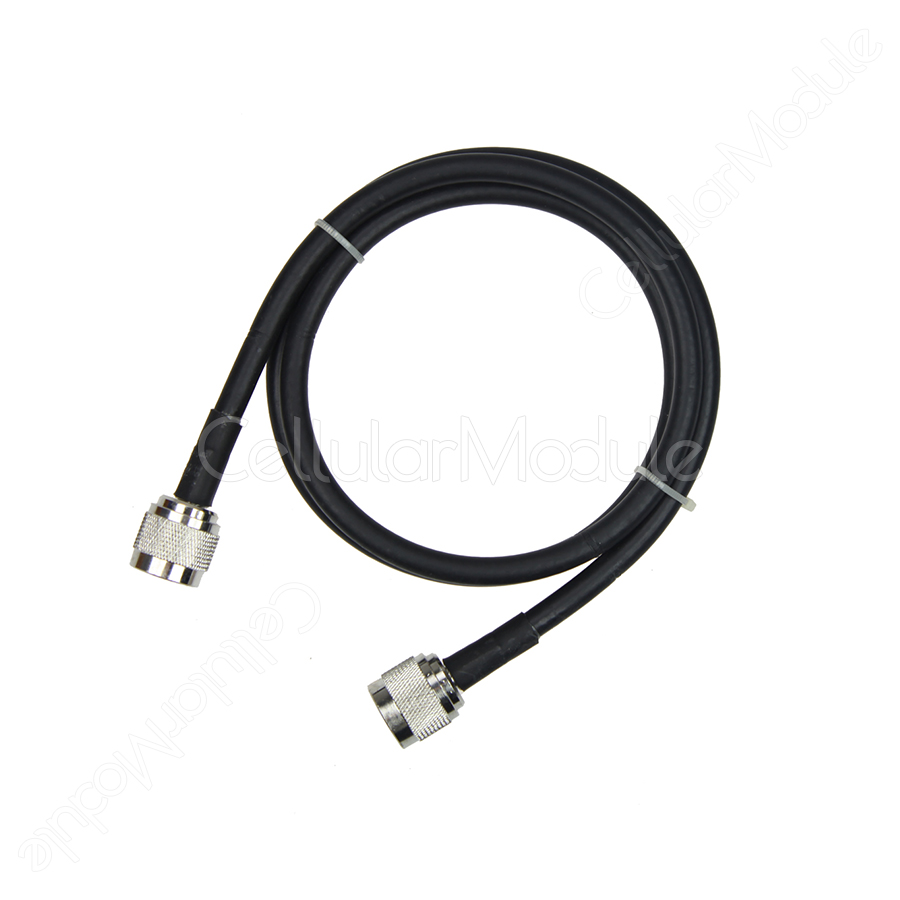

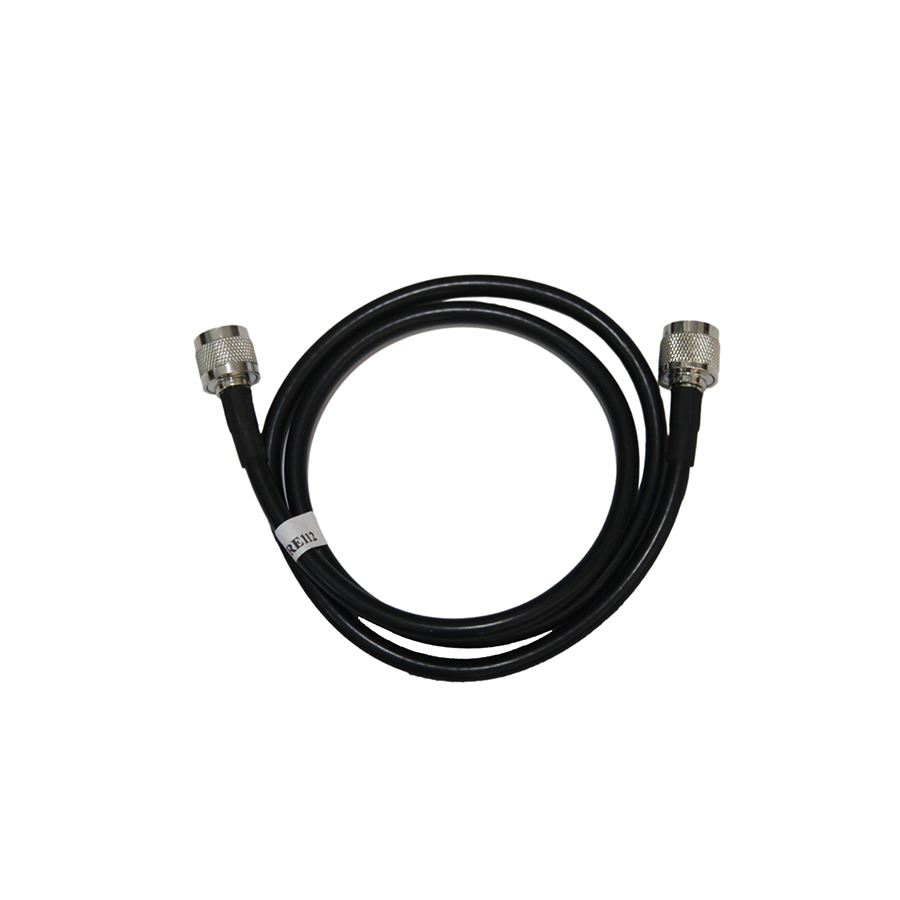

CellularModule - coaxial cable with 2x N Male connector 2

1-Meter 50-5D Coaxial Cable Specifications

Physical Specifications

➀ Inner Conductor	Φ1.8 mm bare copper
➁ Insulation	Φ5.0±0.02 mm foam /solid PE
➂ Folia	Φ5.2 mm bonded aluminium foil
➃ Wire Braid	Φ5.7 mm tinned copper braid
➄ Jacket	Φ7.5 mm PVC
Cable Length	1-meter (3.28-feet)
Connector	2x N Male connectors

Electrical Specifications

Capacitance	82 pF/m
Impedance	50±3 Ohm
Velocity Ratio	82 %
Bent Radius	38 mm
Inner conductor resistance	6.8(10.5) Ohm/Km
Outer conductor resistance	14.1 Ohm/Km
Temperature	-40°C – +85 °C
Insulation resistance	>5000 Mohm.Km
