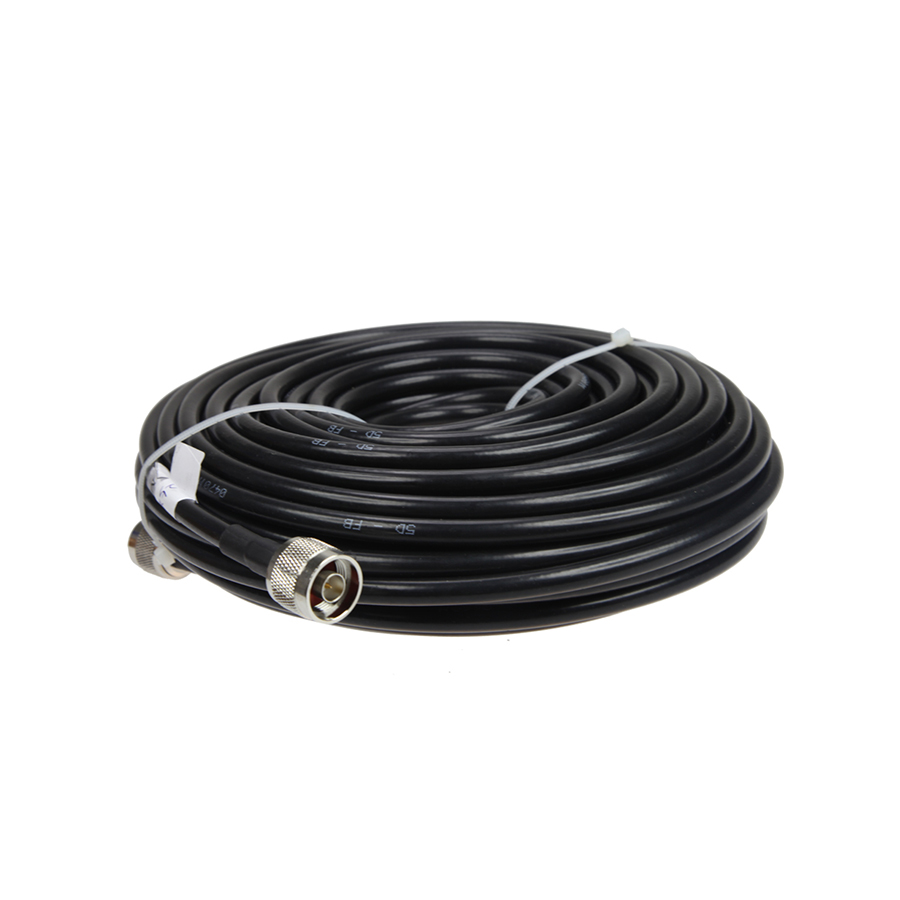

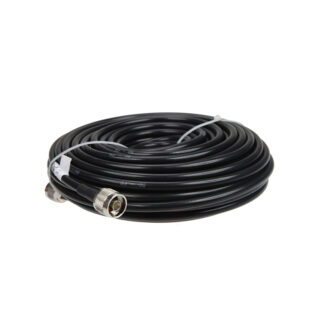

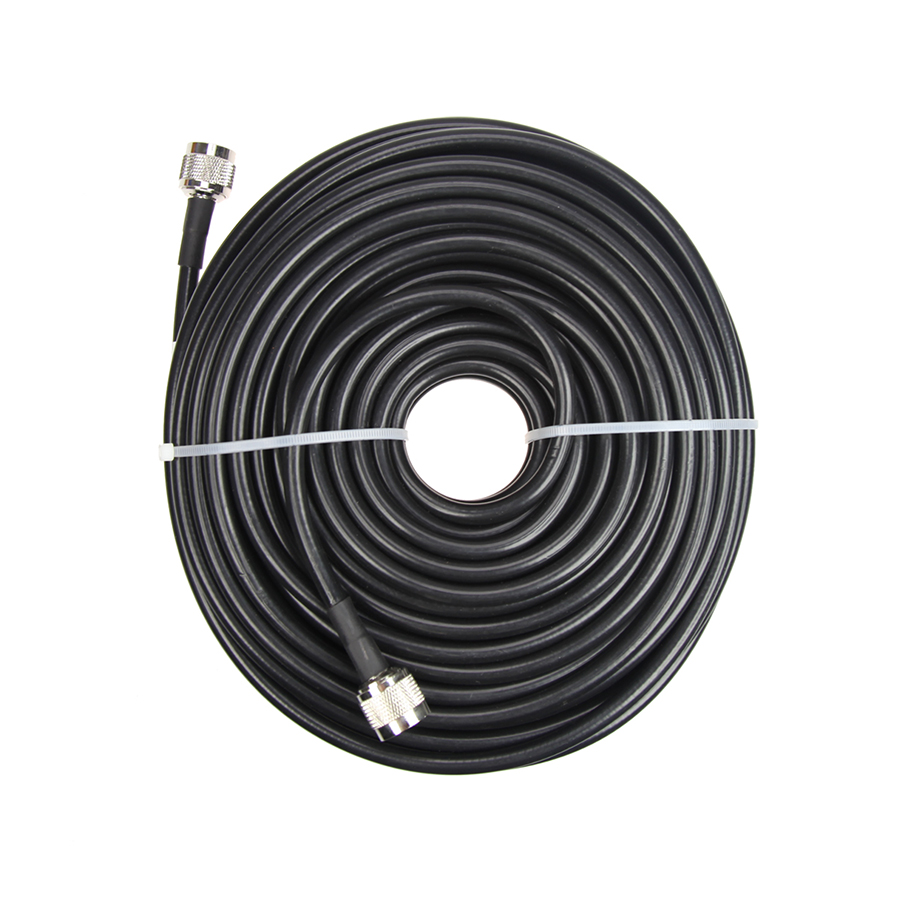

25-Meter 50-5D Coaxial Cable

Name: 25 Meter 50-5D Coaxial Cable
Brand: CellularModule
SKU: EZ16225-BK99
Price: 50.00 USD
Availability: InStock

The 50Ω 50-5D standard coaxial cable could transfer radio frequency signals over distances with low signal loss. It allows you to connect WiFi and 2/3/4G antennas to the router and signal booster to maximize signal transmission.

50-5D is the outdoor rated flexible low loss coaxial cable for use in rugged environments. Each roll has 1pcs 25-meter 50-5D cables and it has 2xN-K male connectors.

Enquiry

SKU: EZ16225-BK99 Categories: Cable, RF Coaxial Cable Tags: 50-5D Cable, Antenna Cable, coaxial cable, Router Cable

Description
Reviews (0)

25 Meter 50-5D Coaxial Cable

Max Attenuation at 20°C

Frequency	Attenuation
150 MHz	7.8 dB/m
280 MHz	10.8 dB/m
350 MHz	12.1 dB/m
400 MHz	13.0 dB/m
800MHz	18.9 dB/m
900MHz	20.2 dB/m
1200MHz	23.7 dB/m
1500MHz	26.8 dB/m
1900MHz	30.6 dB/m
2000MHz	31.5 dB/m
2500 MHz	35.8 dB/m

Low-loss Coaxial Cable

50Ω Ohm impedance – RF signals travel down easily
Aluminum wire braid shield, over 95% coverage
Low PIM passive intermodulation

Outdoor Grade Cable

25M 50-5D flexible coaxial cable
8mm outer PVC jacket
Water resistant RF cable

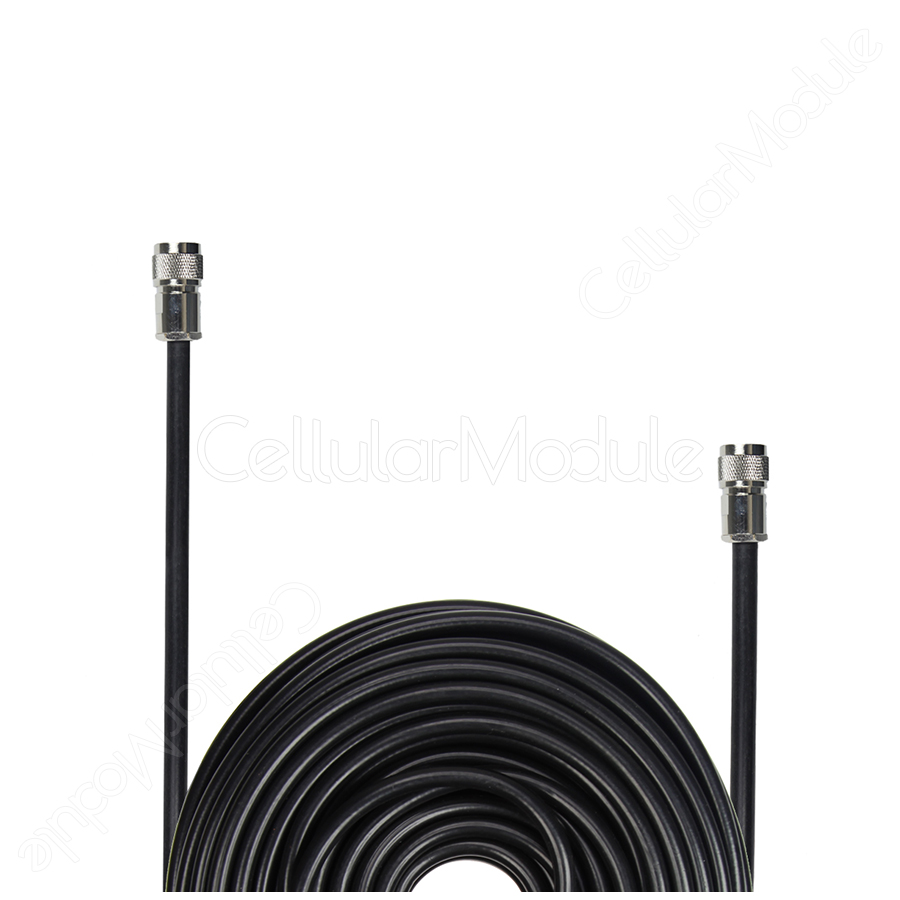

CellularModule - coaxial cable with 2x N Male connector 2

25-Meter 50-5D Coaxial Cable Specifications

Physical Specifications

➀ Inner Conductor	Φ1.8 mm bare copper
➁ Insulation	Φ5.0±0.02 mm foam /solid PE
➂ Folia	Φ5.2 mm bonded aluminium foil
➃ Wire Braid	Φ5.7 mm tinned copper braid
➄ Jacket	Φ7.5 mm PVC
Cable Length	25-meter (82.02-feet)
Connector	2x N Male connectors

Electrical Specifications

Capacitance	82 pF/m
Impedance	50±3 Ohm
Velocity Ratio	82 %
Bent Radius	38 mm
Inner conductor resistance	6.8(10.5) Ohm/Km
Outer conductor resistance	14.1 Ohm/Km
Temperature	-40°C – +85 °C
Insulation resistance	>5000 Mohm.Km
