Got a weak mobile signals? Upgrade the outdoor antenna on your mobile repeater!
High gain logarithm antenna captures a stronger input mobile signal which delivered to the cellphone repeater base unit. Yagi antenna is compatible with all mobile repeaters. High gain yagi antenna improves mobile signal coverage area and signal quality.
You can upgrade normal outdoor antenna to high gain logarithm antenna to increase signal strength and extend mobile signal coverage. The extra gain from the Yagi antenna results in better overall system performance.

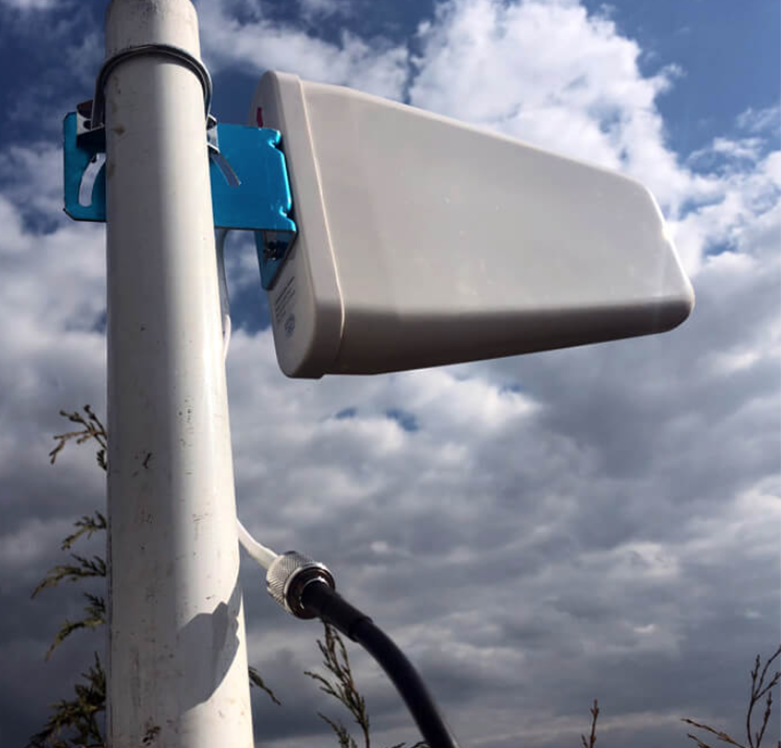

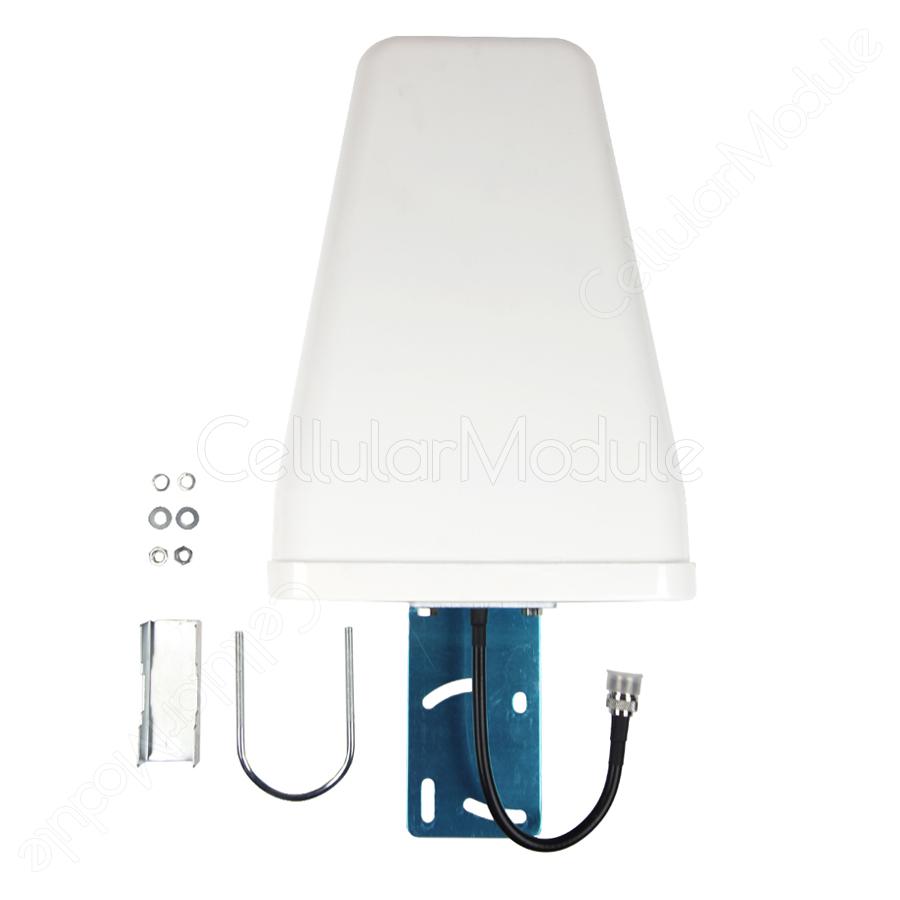

High gain logarithm antenna comes with mounting equipment to attach Yagi antenna to any 20-40mm diameter pipe. The antenna should be pointed towards the nearest mobile phone mast/tower. This is done quite easily by rotating the antenna till you get the best performance.

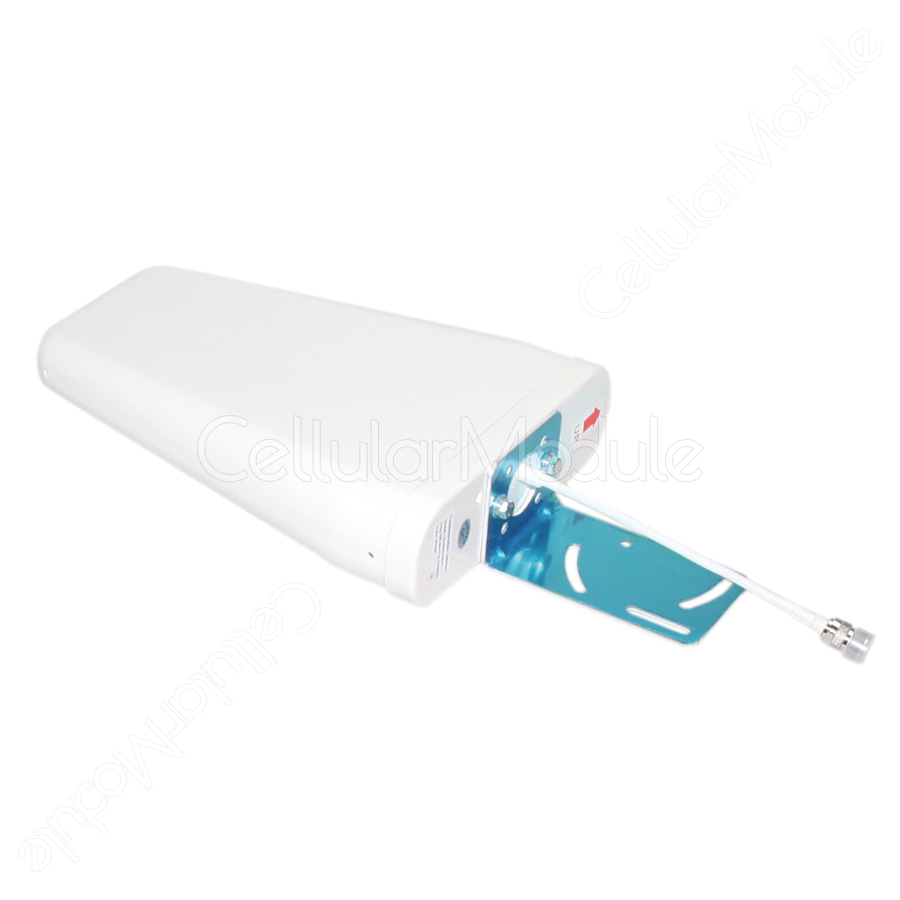

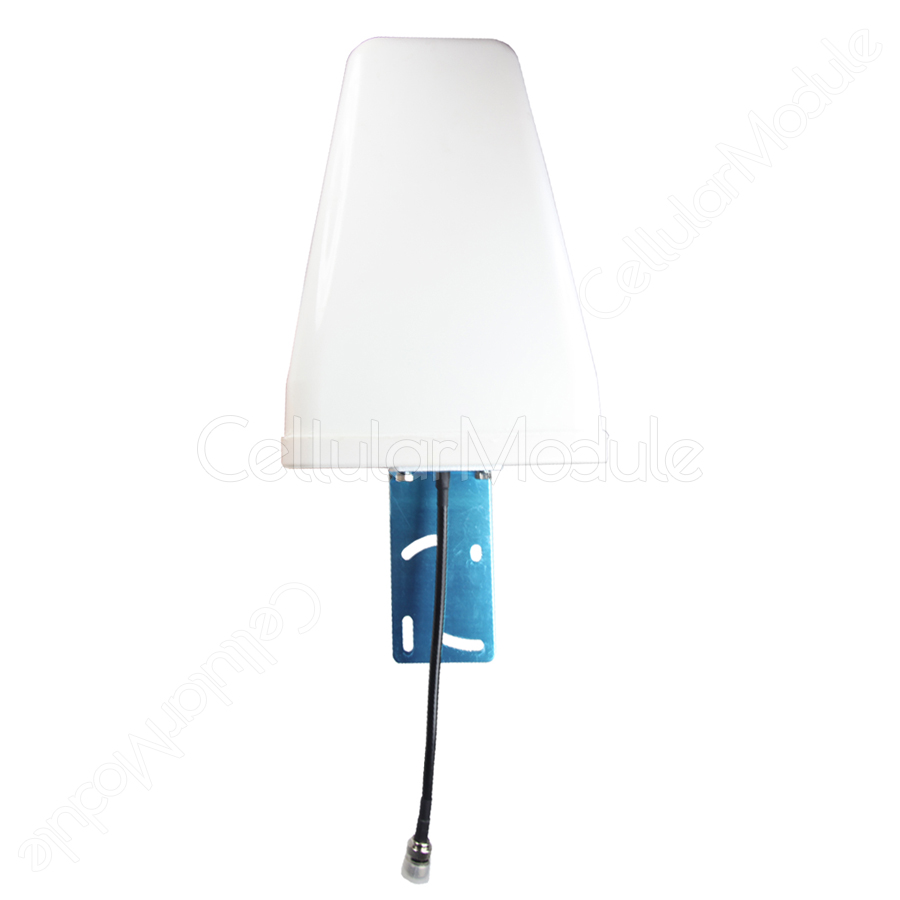

Outdoor Log-Periodic Antenna 698~2700MHz
| Frequency | 698~960/1700~2700MHz |
| Polarization | Vertical |
| Gain | 9.5dBi |
| V.S.W.R | ≤ 1.5 |
| Max Power | 100 Watt |
| Impedance | 50 ohm |
| Lighting Protection | Direct Ground |
| Connector | N-Female |
| Radome Material | PVC |
| Radome Color | White |
| Radiating Element | Copper (CU) |
| Dimension | 390x210x65mm |
| Weight | 100 gram |
| Temperature | -40~70 degree |
Horizontal Working Pattern
Vertical Working Pattern
Coaxial Cable

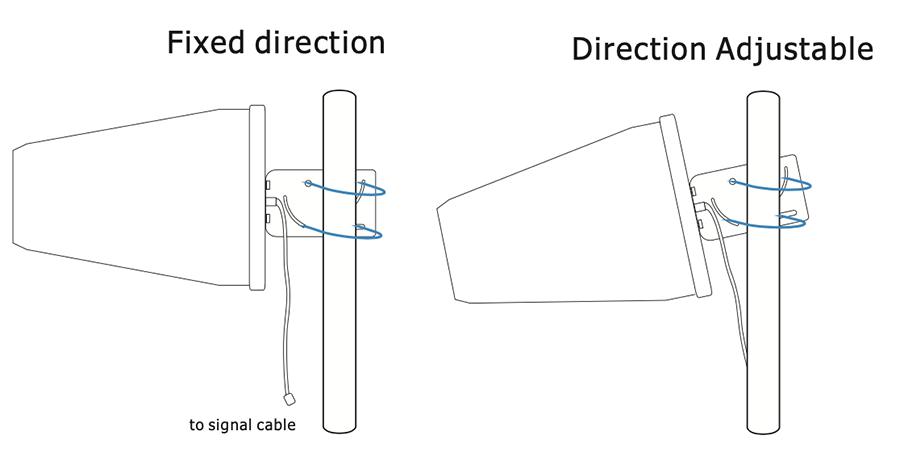

The Log-periodic antenna comes with a 60cm cable. How to install the log-periodic antenna reference the right-side image showing.
Connectors
The default connector on the log-periodic antenna is N-Female type. If you want to connect the antenna to other types of connectors, like SMA, we can provide you the connector adapter.
