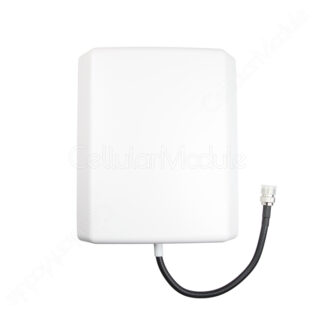

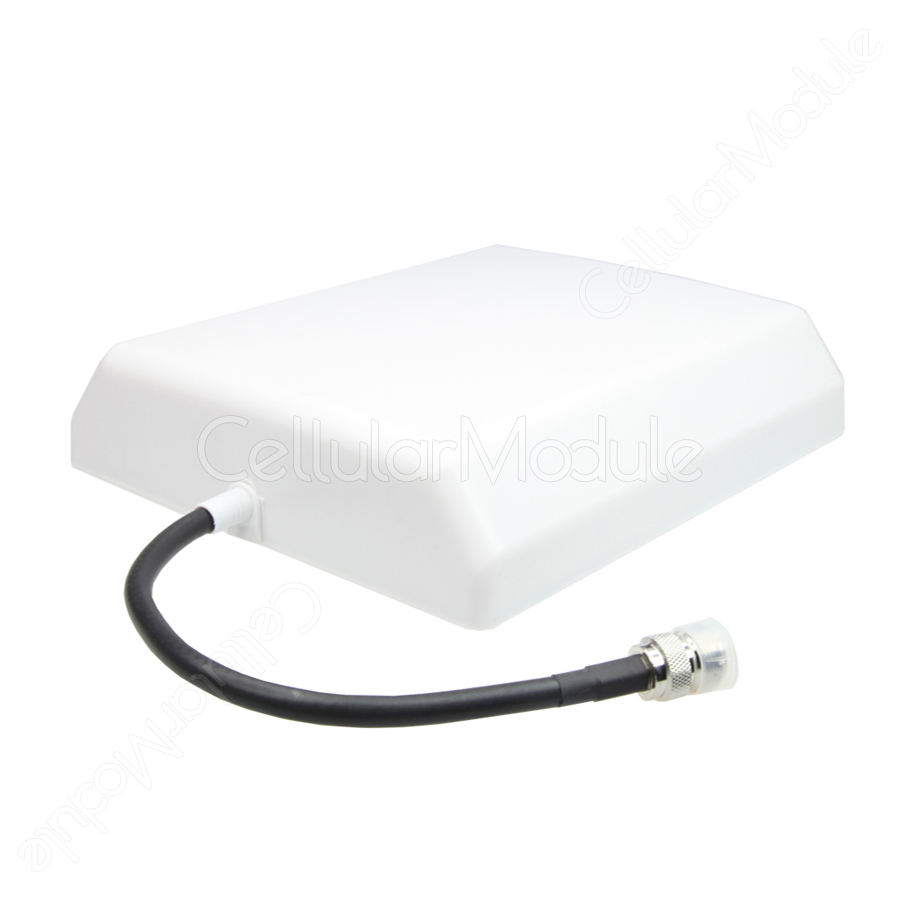

Outdoor Wide Band Panel Antenna
€13.05 – €17.40
Wideband panel antenna to improve the cellular signal reception. Ideal for improves signal reception in the weak signal areas.
Wideband cellular frequency 698~960MHz/1700~2700MHz
2/3/4G antenna
High-gain 7dBi and low V.S.W.R <1.5
Directional panel antenna with wide beamwidth
Outdoor antenna
Got a weak 3G/4G signals? Upgrade the cellular panel antenna to improve the signal reception
Improve the cellular signal reception. The directional panel antenna is wideband antenna works on the full range of 4G LTE mobile frequencies 698~2700MHz. It can work on universal range 2G/3G/4G mobile networks.
Sealed in the plastic case, the Wideband panel antenna is the ideal directional antenna for using in the outdoors.
The directional wideband panel antenna allows you to point towards the nearest cellular tower or the strongest cellular signal source, and effectively increase the signal reception ability.
WIDEBAND PANEL ANTENNA SPECIFICATIONS
| Frequency | 698~960/1700~2700MHz |
| Gain | 7dBi |
| V.S.W.R | ≤ 1.5 |
| Beamwidth | Horizontal 85±10° / Vertical 65±10° |
| Max Power | 50 Watt |
| Lighting Protection | Direct ground |
| Connector | N Female |
| Radome Material | PVC |
| Radiating Element | Copper (CU) |
| Dimension | 240x190x50mm |
| Weight | 600 gram |
| Working Temperature | -40~70 degree |
| Working Humidity | < 95% |
Horizontal Working Pattern
Vertical Working Pattern
Coaxial Cables (Optional)
The default coaxial cable on 4G LTE MIMO panel antenna is RG58 cable with a 60cm length. The default connector is N-Female type. And you can choose the extra 3-meter coaxial cable
Mounting Kit (Optional)
You can choose mounting kit that can offer a convient solution to install the antenna on a pole and changing the antenna direction easily.
| Panel antenna | Defaulted panel antenna, with 3m cable, with mounting kit |
|---|
