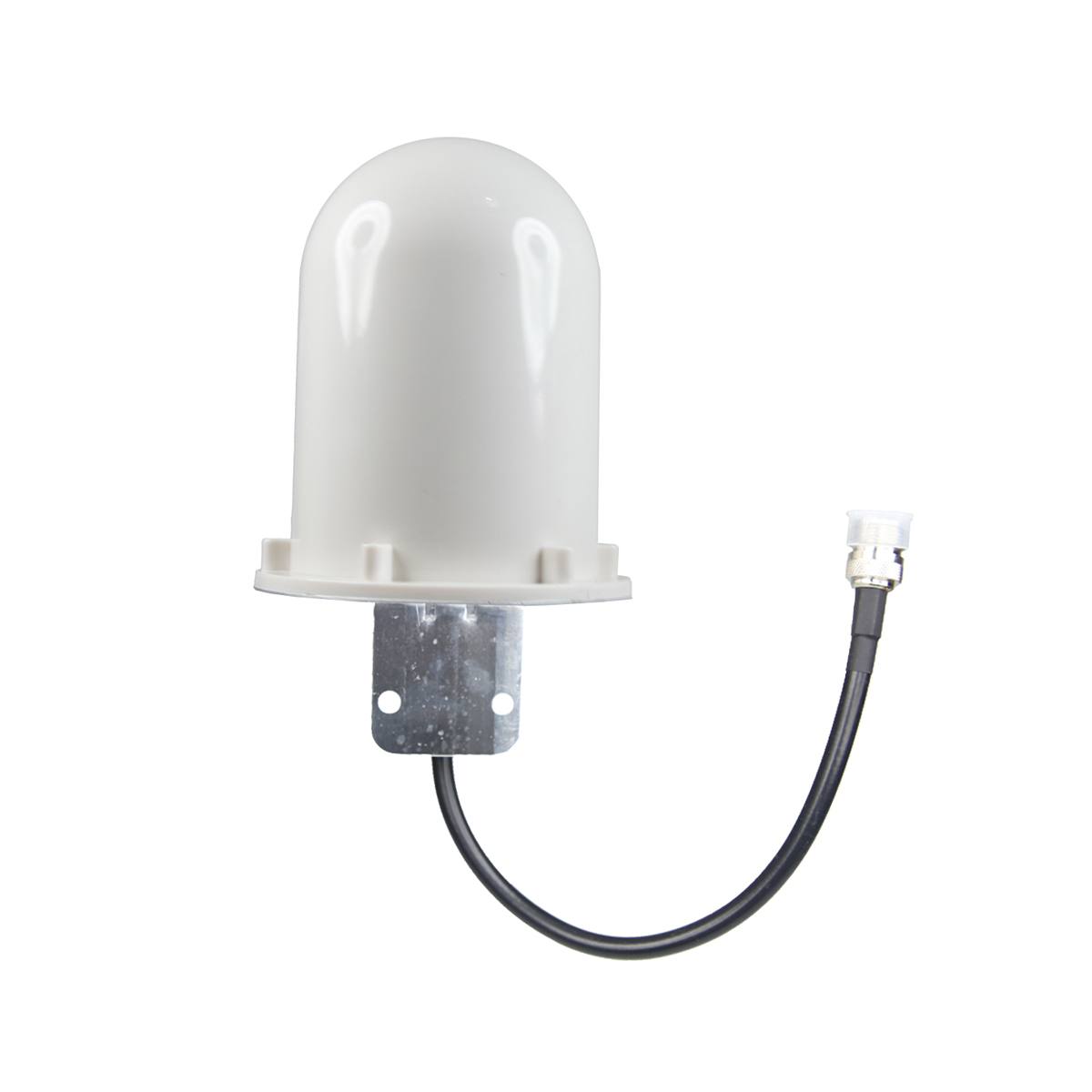

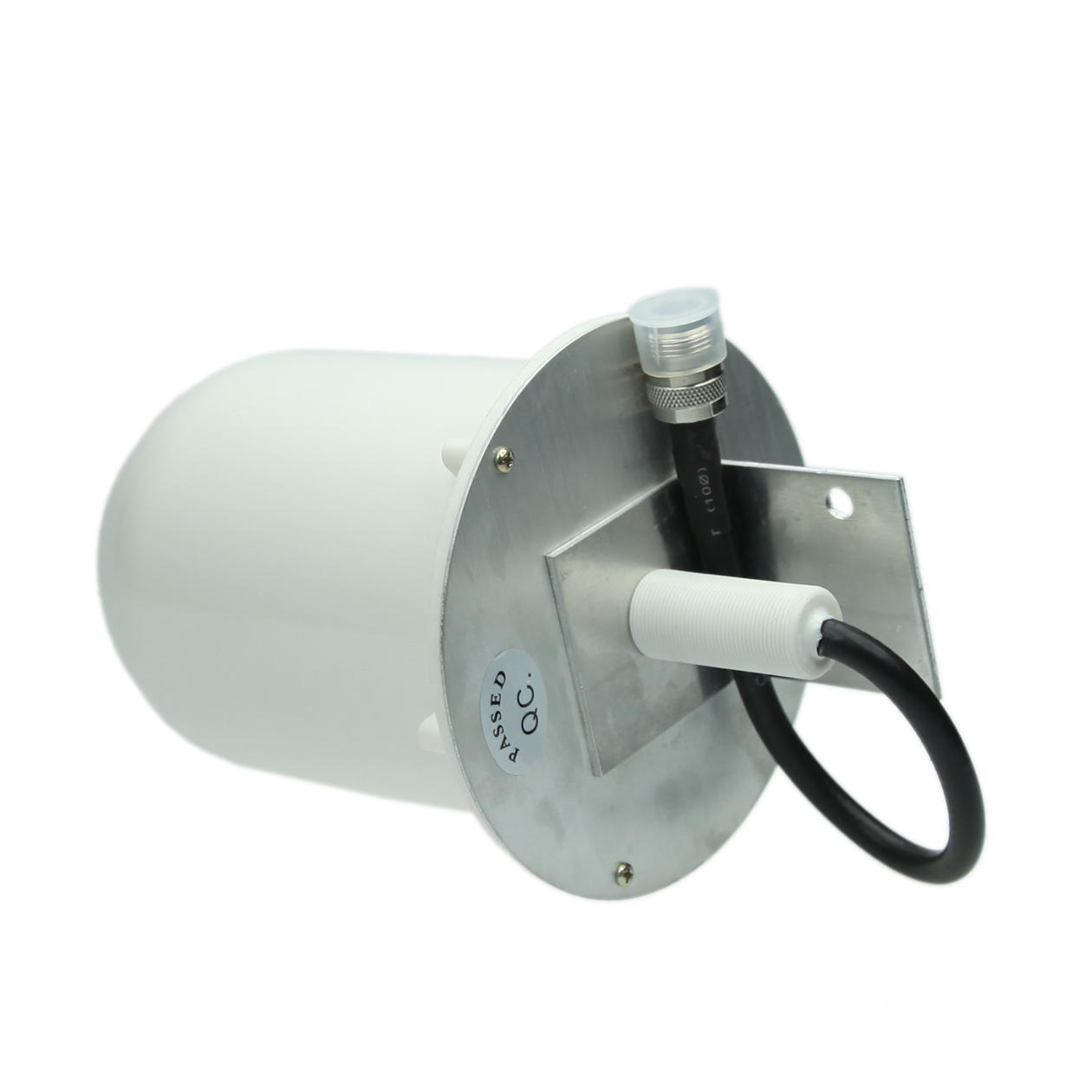

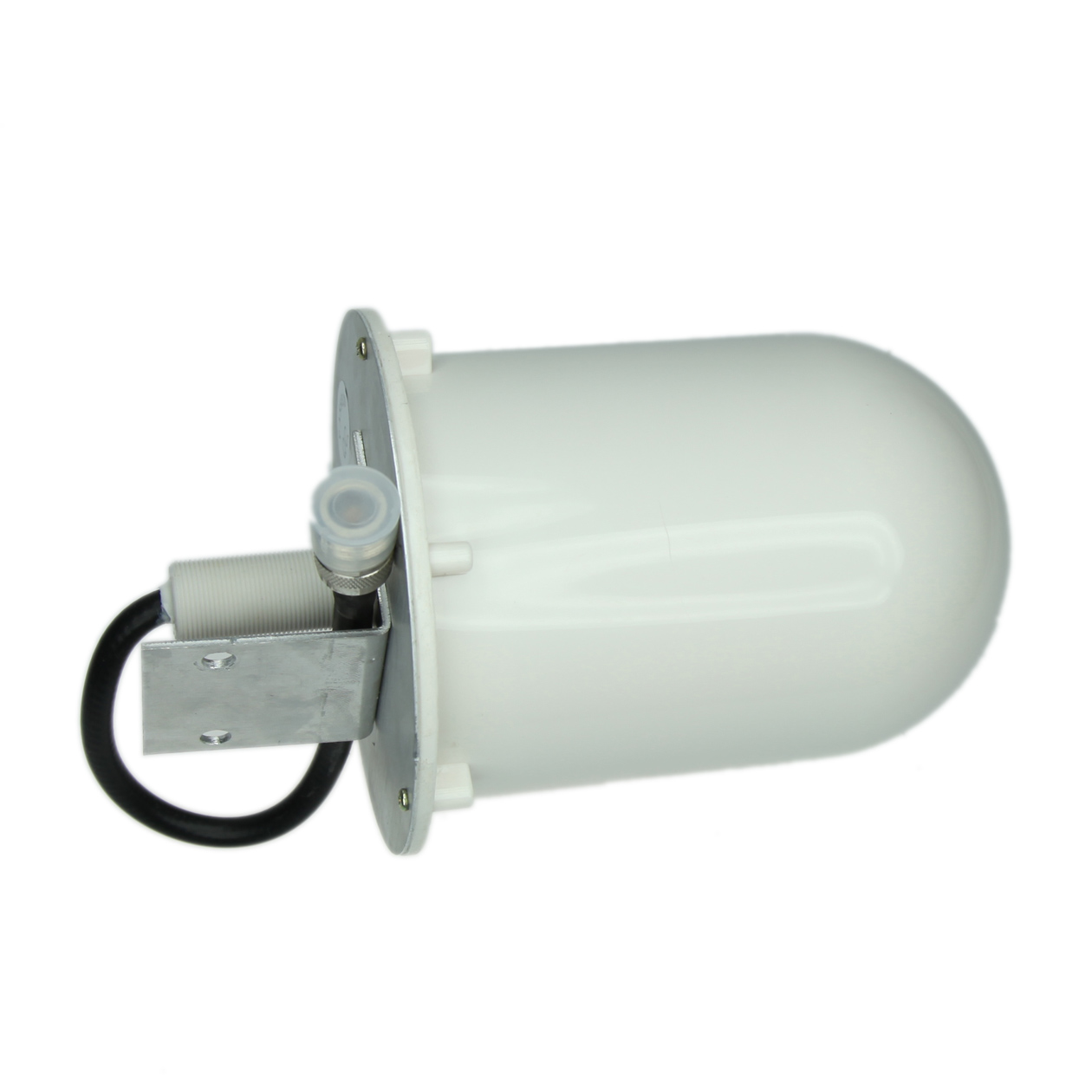

Dome Antenna for Outdoor & Indoor
US$25.00
Dome antenna is suitable for all GSM, DCS, 3G WCDMA mobile repeaters. It is for indoor and outdoor usage, especially for tri-band repeaters.
The antenna cover is made of strong white color PVC material. Radiating element material is high-quality copper.
Multi-band Antenna 698-960/1700-2700MHz
High Gain Up to 7dBi
Omni-directional Coverage
Vertical Polarization
Water Proof PVC Cover
The outdoor dome antenna captures a stronger input mobile signals and delivers them to the cellphone repeater base unit. The frequency ranges from 824~960MHz to 1710~2500MHz. Dome antenna is suitable for all GSM, DCS, 3G WCDMA mobile repeaters. It is for indoor and outdoor usage, especially for tri-band repeaters.
Dome aerial is Omni-directional and picks up mobile signals from all directions. To get stronger signals, please install as high as possible. Dome antenna is very suitable for marine applications and mobile vehicle applications.
The Dome aerial has 7 seven dB gain, and it is not directional. If the outdoor signal is too weak (below 3 bars), it is not recommended to use a dome antenna. You can take directional high gain Yagi Antenna instead. In a word, the Omni-dome antenna will work well where it is minimal 3 bars outdoor signals and coverage of multiple networks is required.
Dome Antenna for Outdoor & Indoor
| SKU | EZ12421-NF |
| Frequency | 698~960/1700~2700MHz |
| Polorization | Vertical |
| Gain | 7 dBi |
| VSWR | <= 2.0 |
| Max Power | 100 Watt |
| Impendance | 50 ohm |
| Lighting Protection | Direct Ground |
| Connector | N Female |
| Radome Material | PVC |
| Radome Color | White |
| Radiating Element | Copper (CU) |
| Dimension | 200mm(D) x 120mm(H) |
| Weight | 360 Gram |
